Where is the OBD2 port in Citroen DS4 (2011 - 2015)

You will find below several pictures which will help you find your OBD connector in your Citroen DS4 (2011 - 2015).

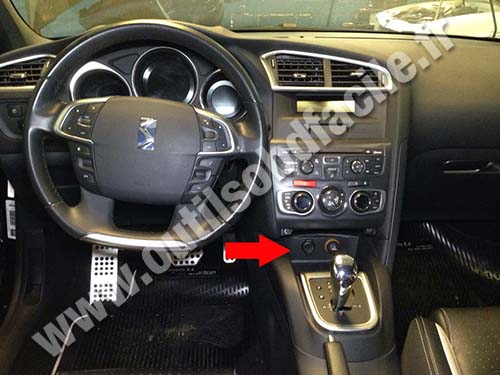

Citroen DS4 Dashboard
Connector is located at the central console side

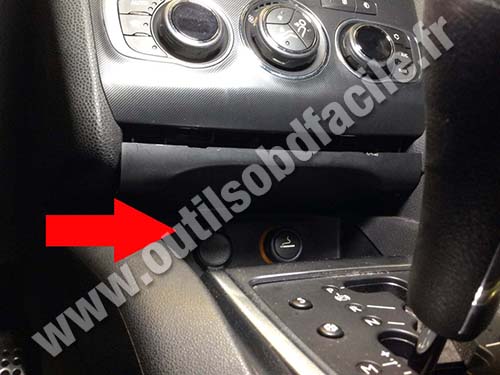

Citroen DS4 Central console
Under the air conditionning button, remove the plastic cover. The cover is difficult to remove use a flat screwdriver.

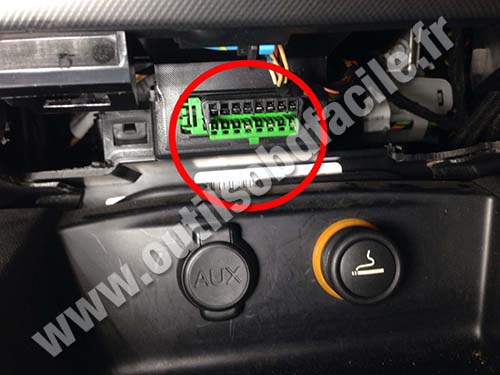

Citroen DS4 OBD Connector
OBD Connector

Those pictures were sent by Ivan Barrio - Thank you for your contribution
