Where is the OBD2 port in Ducati Monster 796 (2007 - ...)

You will find below several pictures which will help you find your OBD connector in your Ducati Monster 796 (2007 - ...) .

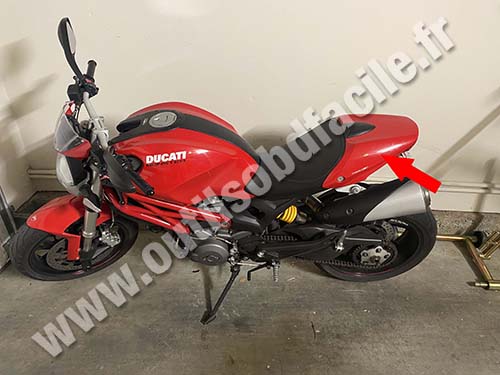

Ducati Monster - Overview
Remove the fairing behind the seat

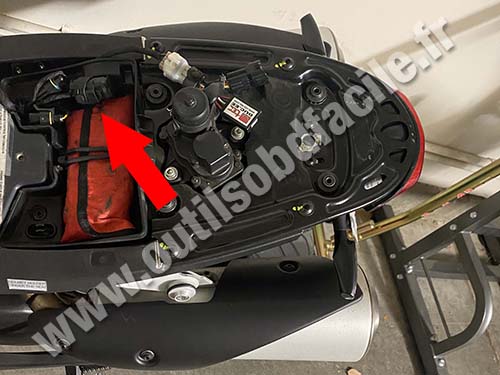

Ducati Monster - Fairing removed
The non-standard diagnostic port is visible here

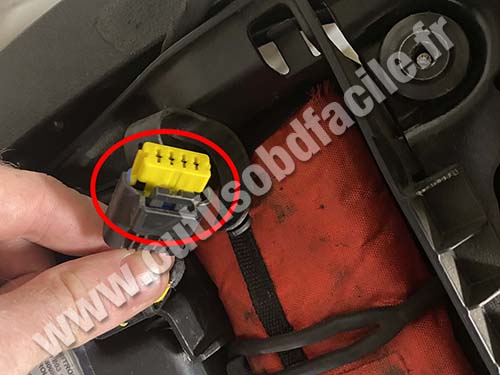

Ducati Monster - Non-standard 4-pin socket
Here is the 4-pin diagnostic socket

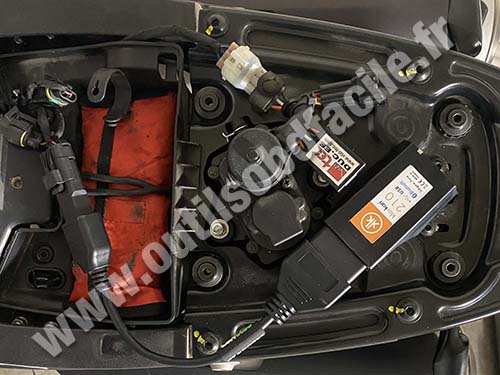

Ducati Monster - OBD Adapter
An adapter is required to upgrade from a 4-pin socket to a standard 16-pin OBD socket

Those pictures were sent by James - Thank you for your contribution
