Where is the OBD2 port in Fiat Uno (2010 - ...)

You will find below several pictures which will help you find your OBD connector in your Fiat Uno (2010 - ...).

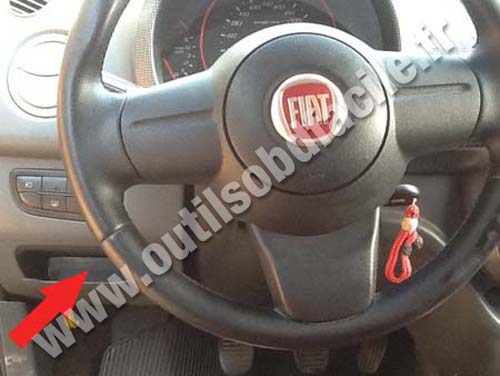

Fiat Uno - Dashboard — To the left of the steering wheel under the fog lights button

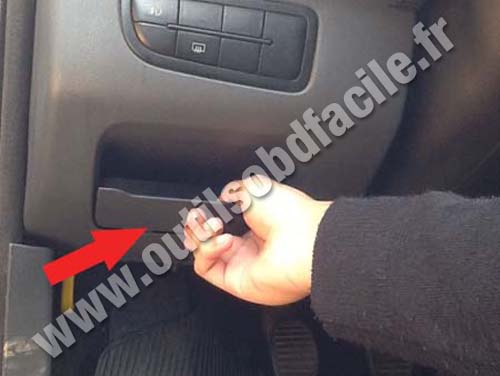

Fiat Uno - Connector hatch — The OBD2 port is behind the plastic cover, which should be strongly pulled

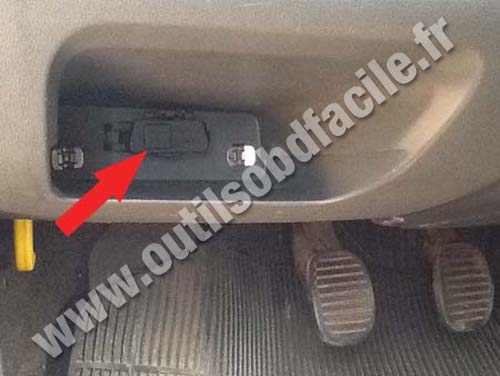

Fiat Uno - Connector cover — Press the plastic clip above the plastic cap and pull the whole cap from right to left.

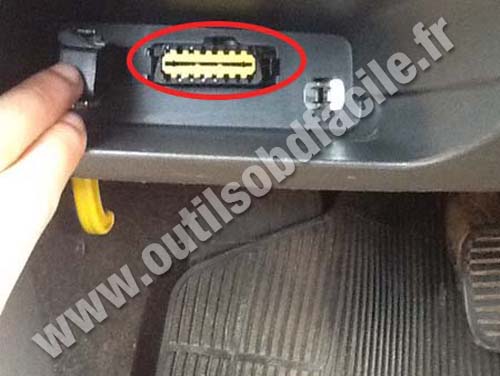

Fiat Uno - OBD2 port — Under the plastic cap, there it is your OBD2 port.

Those pictures were sent by Paulo Silva - Thank you for your contribution
