Where is the OBD2 port in Kia Carnival (1998 - 2006)

You will find below several pictures which will help you find your OBD connector in your Kia Carnival (1998 - 2006).

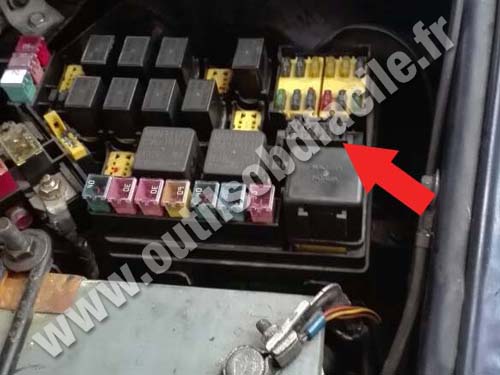

Kia Carnival - Fuses relays
Diagnostic connector is located with the fuses and relays

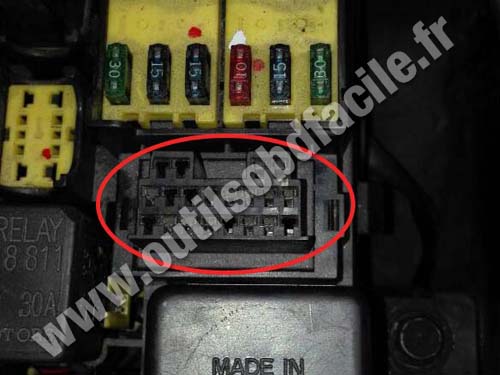

Kia Carnival - 20 pin connector
This vehicle use a non standard connector with 20 pin (Kia specific)

Those pictures were sent by - Thank you for your contribution
