Where is the OBD2 port in Lancia Musa (2004 - 2013)

You will find below several pictures which will help you find your OBD connector in your Lancia Musa (2004 - 2013).

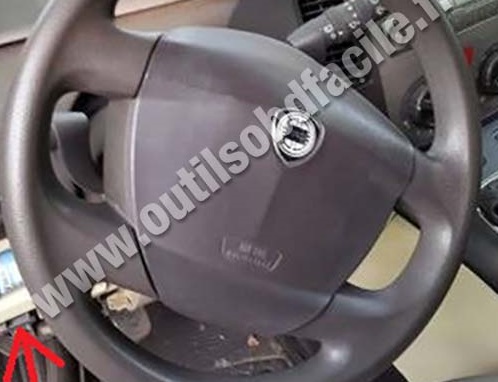

Lancia Musa dashboard — The OBD 2 plug is located under the steering wheel on the left

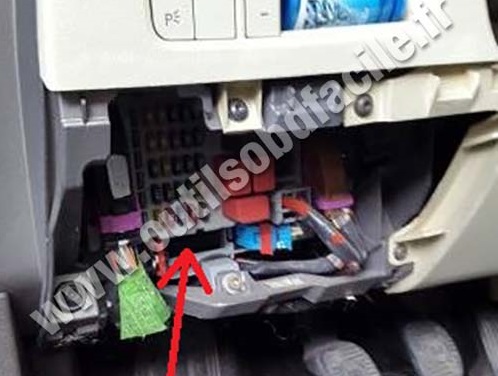

Lancia Musa fuses box — The OBD connector is inside the fuses box. Remove the plastic cover

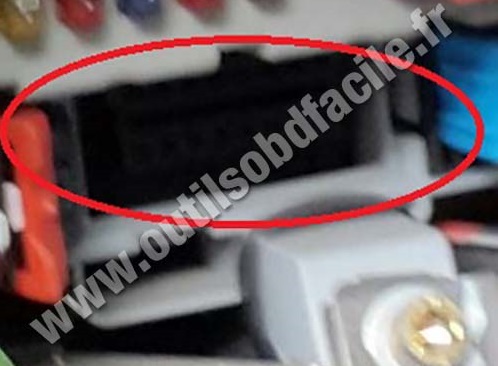

Lancia Musa OBD 2 plug — Here is the OBD 2 plug

Those pictures were sent by Enrico - Thank you for your contribution
