Where is the OBD2 port in Mercedes C Class - 202 (1997-2001)

You will find below several pictures which will help you find your OBD connector in your Mercedes C Class - 202 (1997-2001).

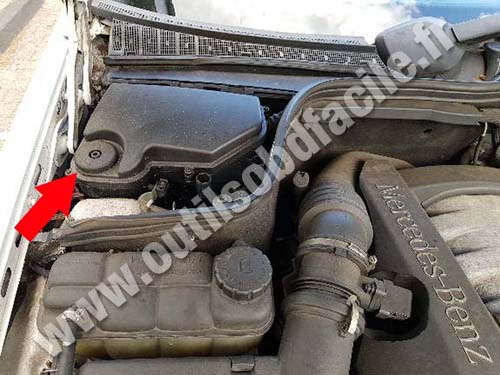

Mercedes C Class W202/S202 - Dashboard — The OBD II socket is located in the engine bay

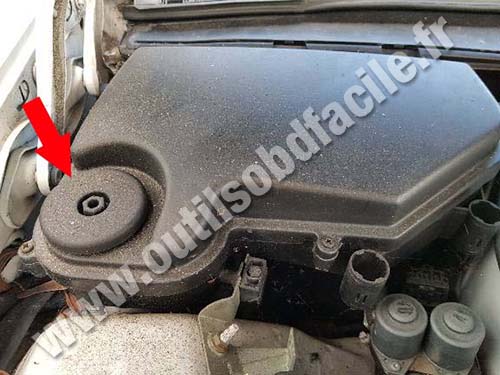

Mercedes C Class W202/S202 - Plastic cover — Unscrew the round plastic cover

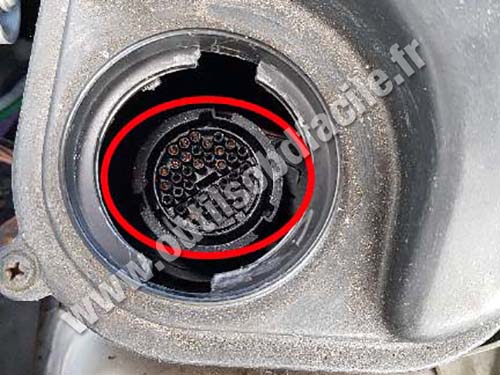

Mercedes C Class W202/S202 - Non-standard round OBD port — Here is the non-standard 38 pin round OBD port

Those pictures were sent by Schiro - Thank you for your contribution
