Where is the OBD2 port in Mercedes Viano - 639 (2003 - 2014)

You will find below several pictures which will help you find your OBD connector in your Mercedes Viano - 639 (2003 - 2014).

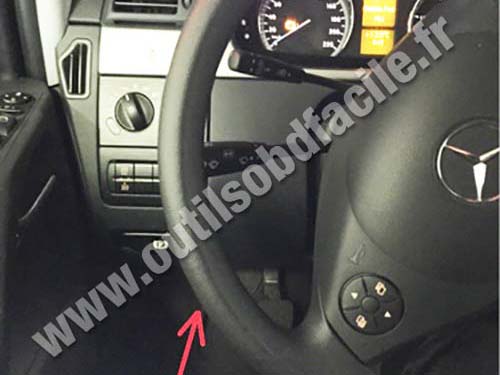

Mercedes Viano tableau de bord — The OBD socket is located above the pedals on the left

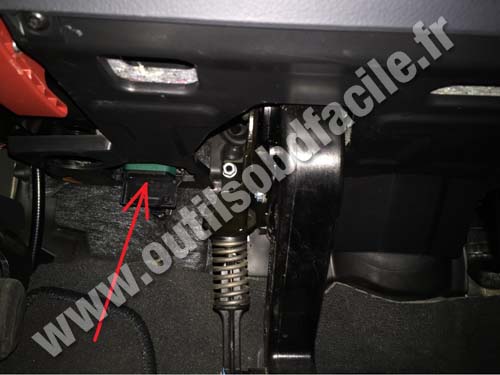

Mercedes Viano pedals — The OBD connector is visible on the left of the clutch pedal

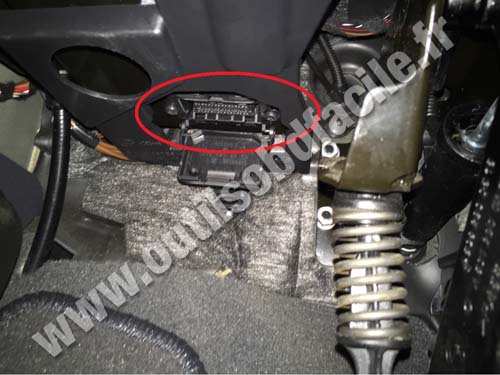

Mercedes Viano OBD II port — Here is the OBD II socket

Those pictures were sent by Philip Raistrick - Thank you for your contribution
