Where is the OBD2 port in Mercedes C Class - 203 (2000 - 2007)

You will find below several pictures which will help you find your OBD connector in your Mercedes C Class - 203 (2000 - 2007).

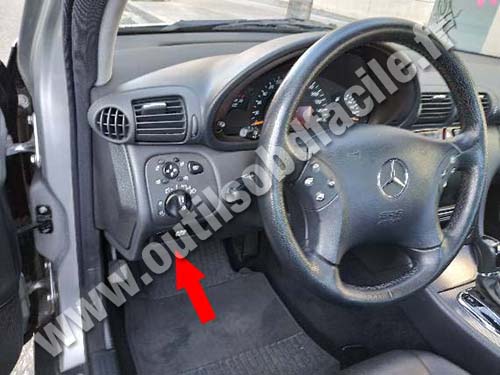

Mercedes C Class W203 - Dashboard — The OBD II socket is located above the pedals

Mercedes C Class W203 - Pedals — The OBD connector is at the right of the hood opening command

Mercedes C Class W203 - OBD socket — The OBD socket is here

Those pictures were sent by Shurik - Thank you for your contribution
